spine-ue4 Runtime Documentation


Please see the Spine Runtimes License before integrating the Spine Runtimes into your applications.

Getting Started


To use the spine-ue4 runtime in your Unreal Engine project:

  1. Download and install Unreal Engine 4, version 4.21+.
  2. Download and install Visual Studio 2015 Community or the latest Xcode depending on your operating system.
  3. Create a new empty code project in the Unreal Engine Editor. You can use either C++ or Blueprints to work with the spine-ue4 runtime, put the plugin requires a code project.
  4. Clone the spine-runtimes Git repository. If you don't want to use Git, download the latest version as a ZIP and unpack it.
  5. In your project folder, create a subfolder called Plugins.
  6. Copy the contents of spine-runtimes/spine-ue4/Plugins/ to your project's Plugins/ folder.
  7. Copy the folder spine-runtimes/spine-cpp/spine-cpp to your project's Plugins/SpinePlugin/Source/SpinePlugin/Public/ folder.
  8. Use the spine-ue4 runtime via C++ or Blueprints in your project.

If you want to work with the Spine Plugin via C++ code, you must also modify your UE4 project's Build.cs files as follows:

  1. Add SpinePlugin to PublicDependencyModuleNames
  2. Add SpinePlugin/Public and SpinePlugin/Classes to PublicIncludePaths

View the samples Build.cs for a full example.

You can inspect the C++ code of both your game and the spine-ue4 runtime by opening the project in the Unreal Engine Editor and selecting File -> Open Visual Studio or File -> Open Xcode.


To explore the spine-ue4 runtime samples:

  1. Download and install Unreal Engine 4, version 4.21+.
  2. Download and install Visual Studio 2015 Community or the latest Xcode depending on your operating system.
  3. Clone the spine-runtimes Git repository. If you don't want to use Git, download the latest version as a ZIP and unpack it.
  4. Copy the folder spine-runtimes/spine-cpp/spine-cpp to the spine-runtimes/spine-ue4/Plugins/SpinePlugin/Source/SpinePlugin/Public/ folder.
  5. Open the project in the Unreal Engine Editor, then checkout the different maps in the Maps/ content folder. Each map has text instructions on how to run it and a description of what you see.

You can inspect and modify the C++ code of both the samples and the spine-ue4 runtime by opening the project in the Unreal Engine Editor and selecting File -> Open Visual Studio or File -> Open Xcode.

Updating spine-ue4 Runtime

Before updating your project' spine-ue4 runtime, please consult our guide on Spine editor and runtime version management.

Once you are sure you want to update to the latest spine-ue4 runtime:

  1. Get the latest spine-ue4 runtime by pulling the latest changes from the spine-runtimes Git repository via Git, or download the latest version as a ZIP and unpack it.
  2. Close the Unreal Engine Editor and Visual Studio/Xcode.
  3. Remove the folder Plugins/SpinePlugin from your Unreal Engine project.
  4. Copy the contents of spine-runtimes/spine-ue4/Plugins/ to your project's Plugins/ folder.
  5. Copy the folder spine-runtimes/spine-cpp/spine-cpp to your project's Plugins/SpinePlugin/Source/SpinePlugin/Public/ folder.
  6. Open the project in the Unreal Engine Editor, then select File -> Generate Visual Studio project files on Windows or File -> Generate Xcode project files on macOS.
  7. Recompile your project's source code as well as the plugin's source code.

Note: The spine-ue4 runtime is based on the generic spine-cpp runtime. Make sure to watch changes to both the spine-ue4 and spine-cpp runtime on GitHub.

Using spine-ue4


The spine-ue4 runtime is an Unreal Engine plugin supporting playback and manipulation of animations created with Spine. The spine-ue4 runtime is written in C++ and based on the generic spine-cpp runtime. The spine-ue4 runtime wraps the spine-cpp structs and functions and exposes them in both code and as Unreal Engine Blueprints. Additionally, the spine-ue4 runtime imports files exported from the Spine Editor and stores them in custom Unreal Engine asset types.

Please consult the Spine Runtimes Guide for a detailed overview of the Spine Runtime architecture.

Asset Management

Exporting for Unreal Engine

Please follow the instructions in the Spine User Guide on how to

  1. Export skeleton & animation data
  2. Export texture atlases containing the images of your skeleton

An export of the skeleton data and texture atlas of your skeleton will yield the following files:

  1. skeleton-name.json or skeleton-name.skel, containing your skeleton and animation data.
  2. skeleton-name.atlas, containing information about the texture atlas.
  3. One or more .png files, each representing on page of your texture atlas containing the packed images your skeleton uses.

The spine-ue4 runtime can import these files into special Unreal Engine asset types.

Note: The spine-ue4 runtime currently does not support atlases exported using pre-multiplied alpha.

Importing into Unreal Engine

  1. Open your Unreal Engine project in the Unreal Engine Editor

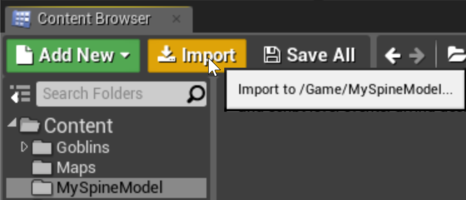

  2. Click Import in the content browser
  3. Select the .json or .skel file you exported from the Spine Editor

The asset importer will create Unreal Engine assets for the skeleton data and texture atlas automatically. The importer assumes the .atlas and .png files are located next to the .json or .skel file of your skeleton.

In case the texture atlas files do not share the name of the skeleton data .json or .skel files, import the texture atlas files manually by clicking on Import in the content browser and selecting the .atlas file.

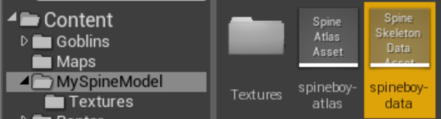

The import creates

  1. A Spine skeleton data asset for skeleton data files (.json, .skel)
  2. A Spine texture atlas asset for the texture atlas file (.atlas)
  3. A texture asset for each texture atlas page (.png), which will be put in a content folder called Textures next to the texture atlas asset

Updating Spine Assets

During development, you may frequently update your Spine skeleton data and texture atlas files. You can simply overwrite these source files (.json, .skel, .atlas, .png) by re-exporting from the Spine Editor.

The Unreal Engine Editor will detect changes to these source files and prompt you to re-import the assets from these source files. After re-import, all references to previously imported Spine assets will be intact and use the latest source data.

Note: The Unreal Engine Editor sometimes fails to recognize source file changes. In this case, locate your Spine skeleton data or texture atlas asset in the content browser, double click it, then select Asset -> Reimport from the menu of the newly opened window.

Skeleton Data Asset

The skeleton data asset stores information about the bone hierarchy, slots, draw order, animations and other data that constitutes your skeleton. Other components provided by the spine-ue4 runtime reference and share this skeleton data asset to animate and display a skeleton as part of an Unreal Engine actor instance.

The skeleton data asset allows you to specify animation mix times. Double click the asset in the content browser, then enter the default mix time or define mix times for two specific animations by clicking the + sign on the Mix Data property of the asset.

Components using the skeleton data asset, like the skeleton animation component, use these mix times when playing back animations.

The detail view for a skeleton data asset also shows all bones, slots, animations, skins, and events contained in the asset.

Texture Atlas Asset

The texture atlas asset contains information about the images used by your skeleton, namely on what texture atlas page an image is stored, as well as its UV texture coordinates on the texture atlas page.

You can view the texture of the texture atlas pages when double clicking the asset in the content browser.

Note: You can modify the textures referenced by the texture atlas asset. In this case, make sure the UV texture coordinates stay valid.


The spine-ue4 runtime provides you with a set of components that allow to display, animate and modify skeletons exported from Spine. These components reference skeleton data and texture atlas assets you import as described above.

Adding a Skeleton to a Level

To quickly display a Spine skeleton in your Unreal Engine project:

  1. Import the skeleton data and texture atlas as described above.
  2. Create an empty actor in your level.

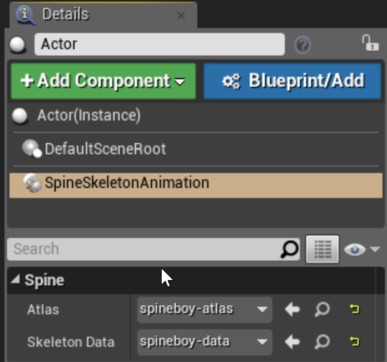

  3. Add a Spine Skeleton Animation component to your actor in its detail view and set the skeleton data and texture atlas properties to your assets.

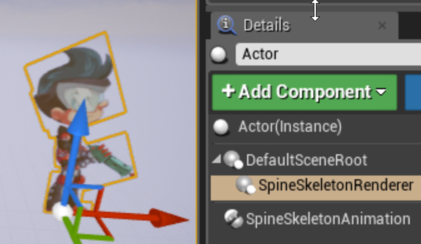

  4. Add a Spine Skeleton Renderer Component to your actor

You can now either use blueprints or the components' C++ API to animate the skeleton, react to events triggered by animations, etc. Refer to the component documentation below for more details.

Note: In order for the editor to render your skeleton, please turn on realtime mode in your viewport

Skeleton Component

The skeleton component stores references to a skeleton data and texture atlas asset and will update the world transforms of each bone in every Tick(). It serves as the base component for the skeleton animation component or your own custom component.

Note: In general, you want to use the skeleton animation component described below. It allows you to apply animations to your skeleton. Use the plain skeleton component as the base for your own custom skeleton components.

Setting Skeleton Data & Texture Atlas

A skeleton component requires references to a skeleton data asset from which it can get the information about a skeleton's bone hierarchy, slots etc., as well as a reference to a texture atlas asset, from which it gets information about the images used by the skeleton.

To set the skeleton data and texture atlas

  1. Select the component in an actor's detail view
  2. Set the Atlas and Skeleton Data properties

Note: Both the skeleton data and the atlas asset references have to be set for the component to function properly. If one or both are undefined, the component will gracefully ignore all interaction via C++ and blueprints.


The skeleton component implements the UActorComponent::Tick() method in which it updates the world transforms of all bones of the skeleton.

The component exposes the multicast delegates BeforeUpdateWorldTransform and AfterUpdateWorldTransform as properties that allow you to intercept this life-cycle before and after the world transforms of all bones are calculated. You can bind to these delegates to modify bone positions and other aspects of the skeleton without having to care for the update order of your actors and components.


In the class that should intercept the life-cycle, add a UFUNCTION declaration to the class header file:

void BeforeUpdateWorldTransform(USpineSkeletonComponent* skeleton);

Note: It is important to mark the method as a UFUNCTION, otherwise it can not be bound to the delegate.

Next, add a definition of this function to your class' .cpp file:

void MyClass::BeforeUpdateWorldTransform(USpineSkeletonComponent* skeleton) {
... modify the skeleton here ...

Finally, bind the method to the delegate, e.g. in BeginPlay() of your actor or component. Assuming you have a reference to the AActor containing the skeleton component:

AActor* actor = ...
USpineSkeletonComponent* skeletonComponent = static_cast<USpineSkeletonComponent*>(Actor->GetComponentByClass(USpineSkeletonComponent::StaticClass()));
skeletonComponent->BeforeUpdateWorldTransform.AddDynamic(this, &USpineBoneDriverComponent::BeforeUpdateWorldTransform);

Binding to the AfterUpdateWorldTransform delegate works the same.

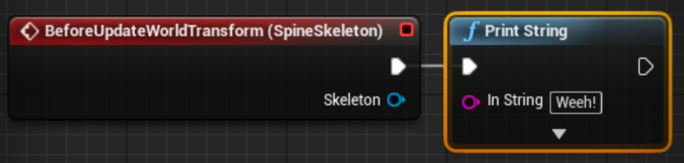

Assuming you have a blueprint for the actor containing the skeleton component

  1. Open the blueprint in the blueprint editor
  2. In the components view, select the skeleton component
  3. In the details view for the skeleton component, click on the + for the Before Update World Transorm or After Update World Transform
  4. Connect other blueprint nodes to the exec pin of the event to implement your custom update logic

Binding to the AfterUpdateWorldTransform event works the same.

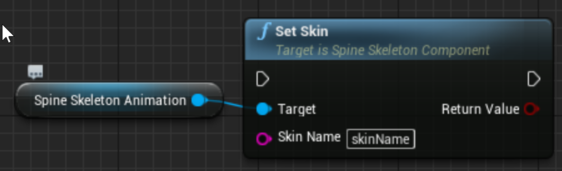

Setting Skins

A Spine skeleton may have multiple skins that define which attachment go on which slot. The skeleton component provides a simple way to switch between skins.

bool success = skeletonComponent->SetSkin(FString(TEXT("skinName"));

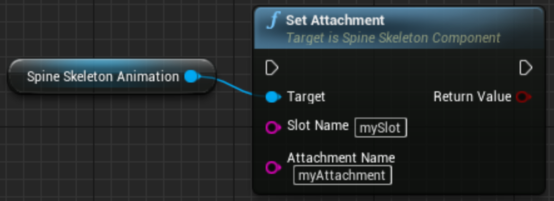

Setting Attachments

To set an attachment, provide the slot and attachment name.

bool success = skeletonComponent->SetAttachment(FString(TEXT("slotName")), FString(TEXT("attachmentName"));

Resetting to Setup Pose

For procedural animation it is sometimes necessary to reset bones and/or slots to their setup pose.


Flipping a Skeleton

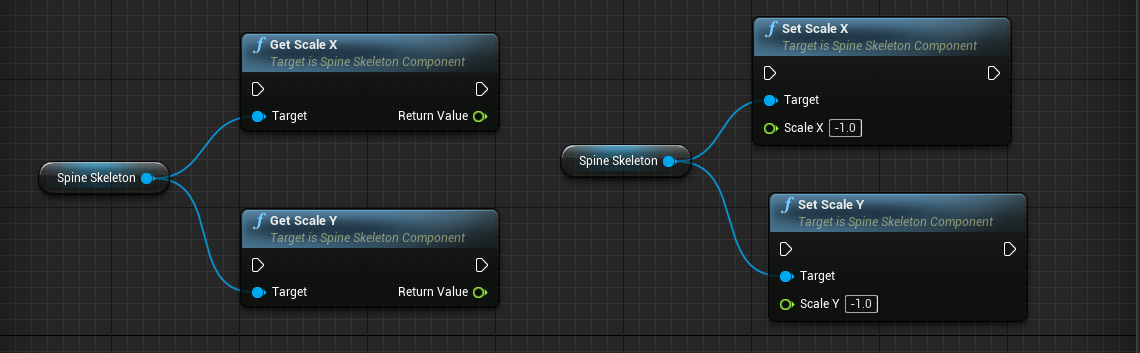

Flipping a skeleton vertically or horizontally allows you to reuse animations, e.g. a walk animation facing left can be played back to face right.

bool isFlippedX = skeletonComponent->GetScaleX() < 1;
bool isFlippedY = skeletonComponent->GetScaleY() < 1;

Getting and Setting Bone Transforms

The skeleton component lets you set and get bone transforms so you can implement IK terrain following or let other actors and components such as particle systems follow the bones in your skeleton. All transforms are given in the world coordinate system to make interaction easier.

Note: Should you require to modify the local transform of a bone, please use the spine-cpp runtime API in your C++ code.

Note: Make sure you apply new bone positions as part of the update world transform life-cycle, otherwise your modifications may be overwritten by animations.

Note: The Spine bone follower and Spine bone driver components are an easier way to interact with bones.

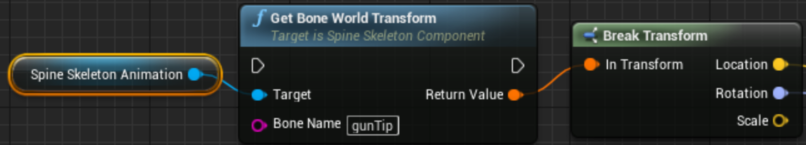

FTransform boneWorldTransform = skeletonComponent->GetBoneWorldTransform(FString(TEXT("boneName"));
skeletonComponent->SetBoneWorldPosition(FString(TEXT("boneName"), FVector(x, y, z));

Skeleton Animation Component

The skeleton animation component is the heart of the spine-ue4 runtime. It allows you to add a Spine skeleton to an actor, animate it, react to animation events, and so on.

Note: The skeleton animation component is based on the skeleton component, and hence inherits all of skeleton components features described above!


The skeleton animation component implements the UActorComponent::Tick() method in which it updates the underlying AnimationState based on the delta time, applies the AnimationState to the skeleton, and updates the world transforms of all bones of the skeleton.

As the skeleton animation component is based on the skeleton component, you can bind to the BeforeUpdateWorldTransform and AfterUpdateWorldTransform as described above.

The skeleton animation component exposes the AnimationState API to both blueprints and C++. This section assumes a familiarity with concepts like tracks, track entries, mix times, or animation queuing as described in the section Applying Animations in the generic Spine Runtime Guide.

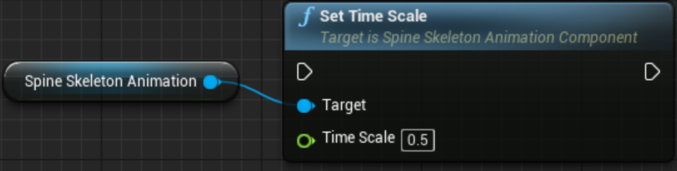

Time Scale

You can set the time scale of the skeleton animation component to slow down or speed up the playback of animations. The delta time used to advance animations is simply multiplied with the time scale, e.g. a time scale of 0.5 slows the animation down to half the normal speed, a time scale of 2 speeds it up to twice the normal speed.

float timeScale = animationComponent->GetTimeScale();

Setting Animations

To set an animation, provide the track index, animation name and whether to loop the animation-

USpineSkeletonAnimationComponent* animationComponent = ... fetch from actor ..

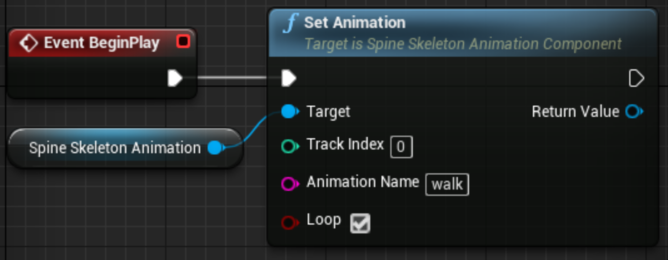

UTrackEntry* entry = animationComponent->SetAnimation(trackIndex, FString(TEXT("walk")), true);

Queueing Animations

To queue an animation, provide the track index, animation name, whether to loop the animation, and the delay after which this animation should start playing on the track in seconds.

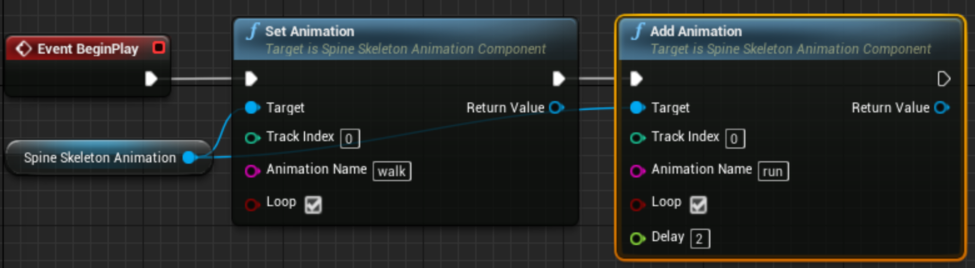

UTrackEntry* entry = animationComponent->AddAnimation(trackIndex, FString(TEXT("run")), true, 2);

Setting and Queueing Empty Animations, Clearing Tracks

The skeleton animation component also provides methods and blueprint nodes to set an empty animation, queue an empty animation, or clear one or all tracks. All of these work analogous to the methods and nodes shown above.

UTrackEntry* entry = animationComponent->SetEmptyAnimation(trackIndex, mixDuration);
entry = animationComponent->AddEmptyAnimation(trackIndex, mixDuration, delay);

Track Entries

You'll receive a TrackEntry from all the methods/nodes that allows you to further customize the playback of this specific animation, as well as bind to delegates of track entry specific events. See the section Processing AnimationState Events below.

Note: The returned track entries will only be valid until the corresponding animation is removed from the underlying animation state. The Unreal Engine garbage collector will automatically free them. After a dipose event is received for a track entry, it should no longer be stored or accessed. The C++ wrapper around the underlying spTrackEntry guards against invalid access.

UTrackEntry* entry = ...
float trackEnd = entry->GetTrackEnd();

Processing AnimationState Events

While animations are played back by the underlying AnimationState, various events will be emitted that notify listeners that

  1. An animation started.
  2. An animation was interrupted, e.g. by clearing a track or setting a new animation.
  3. An animation was completed, which may occur multiple times if looped.
  4. An animation has ended
  5. An animation and its corresponding TrackEntry have been disposed
  6. A user defined event was fired

The skeleton animation component provides delegates to which C++ code or blueprints can bind in order to react to these events for all queued animations on all tracks. Listeners can also be bound to the corresponding delegates of a specific TrackEntry only.


In the class that should react to AnimationState events, add UFUNCTION declarations for the events you want to listen to the class header file:

void AnimationComplete(UTrackEntry* entry);

void UserDefinedEvent(UTrackEntry* entry, FSpineEvent evt);

In the corresponding .cpp implementation file, add the definitions:

void MyClass::AnimationComplete(UTrackEntry* entry) {
... react to complete event here ...

void MyClass::UserDefinedEvent(UTrackEntry* entry, FSpineEvent evt) {
... react to user defined event here ...

Finally, bind to the corresponding delegates of a USkeletonAnimationComponent or UTrackEntry:

USpineAnimationComponent* animationComponent = ...
animationComponent->AnimationComplete.AddDynamic(this, &MyClass::AnimationComplete);

UTrackEntry* entry = ...
animationComponet->AnimationEvent.AddDynamic(this, &MyClass::UserDefinedEvent);

To bind to AnimationState events on the skeleton animation component:

  1. Open the blueprint
  2. Select the skeleton animation component on your actor

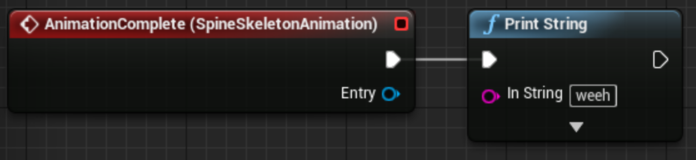

  3. In the detail view, click on the + button next to the event you want to react to

To bind to the delegates of a specific TrackEntry:

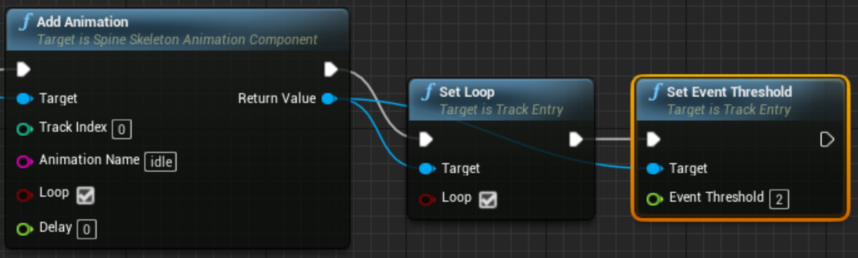

  1. Drag the return value pin of an Set Animation, Add Animation, Set Empty Animation or Add Empty Animation node to an empty space in the blueprint.
  2. Select Assign Animation XXX from the Components -> Spine -> TrackEntry category in the popup
  3. Make sure the Bind Event to node is wired in such a way that it is executed.

Viewport preview

You can preview animations and skins in the UE4 editor viewports using the Preview Animation and Preview Skin properties of the skeleton animation component. Simply enter the name of the animation and skin.


The reset the animation or skin, set the respective property to an empty text.

Skeleton Renderer Component

The skeleton renderer component is responsible for drawing the current state of a skeleton or skeleton animation component on the same actor. Rendering is performed via a procedural mesh. The component uses the texture atlas asset referenced by the skeleton (animation) component to find the textures needed to draw the attachments of the skeleton.


The skeleton renderer component has 4 material properties, one for each blend mode supported by Spine. By default, these 4 materials are set to unlit materials that are part of the spine-ue4 plugin (see the Contents folder of the plugin).

To modify the materials used by all skeleton renderer components, modify the default materials of the plugin.

To modify the materials used by a specific skeleton renderer component, simply create a new material and assign it to the material property of the skeleton renderer component.

In all cases, you must provide a parameterized material that allows the skeleton renderer component to set the texture source. By default, the renderer component assumes the texture parameter is called "SpriteTexture". You can customize the parameter name on the skeleton renderer component.

Depth Offset

Attachments are rendered back to front in the x/z plane by the skeleton renderer component. Each attachment is offset by a customizable depth offset value on the y-axis to avoid z-fighting. The depth offset is freely customizable in both C++ and blueprints.

Skeleton Follower Component

This component references a bone of a skeleton (animation) component and sets its own transform to that of the bone on every Tick.

Use this to let objects like particle systems follow a specific bone on the skeleton.

Skeleton Driver Component

This component references a bone of a skeleton (animation) component and sets the bones position to its own position on every Tick. The component will set the bone position before the skeleton (animation) component updates the world transforms.

Use this for use cases such as letting the user drag a bone of the skeleton around.

Spine widget for UMG UI

Since Spine 3.8, the spine-ue4 runtime offers the Spine widget for integration of Spine skeletons with your UMG UI. The widget has the same interface as the Skeleton Animation Component, for both blueprints and C++ code. The widget also shares some interface with the Skeleton Renderer Component, namely allowing you to set the depth offset between attachments, and changing the materials used to render the skeleton. Please refer to the sections on these two components for the details.

To add a Spine skeleton to your UMG UI, start by creating a new widget blueprint. Open the blueprint, then add a Spine widget to it via the palette.

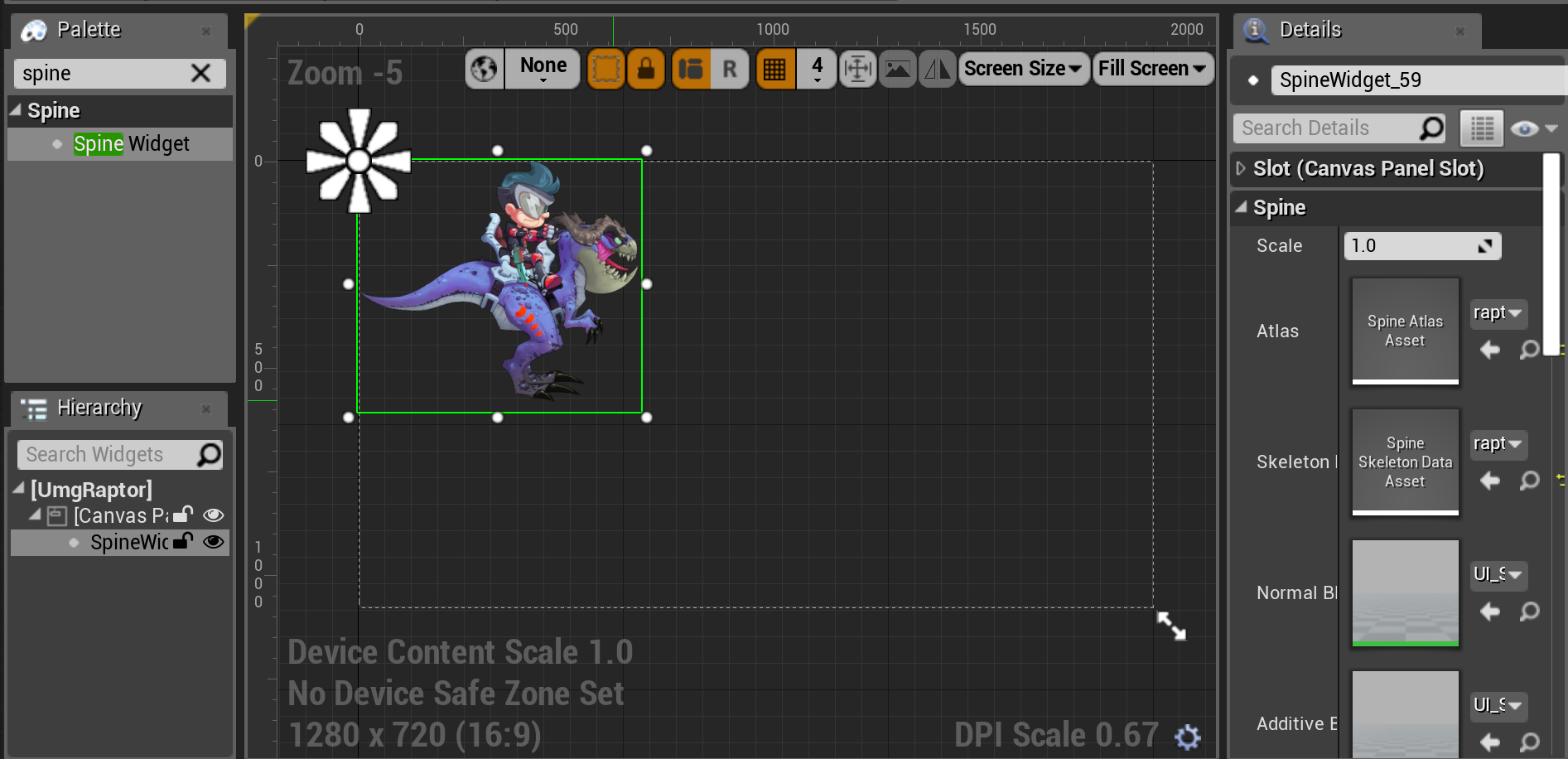

Next, set the atlas and skeleton data asset on the Spine widget, and resize it in the designer viewport to fit your requirements.

The skeleton will resize automatically, keeping its aspect ratio, filling as much space within the widget as possible. You can scale it further up or down by via the Scale property.

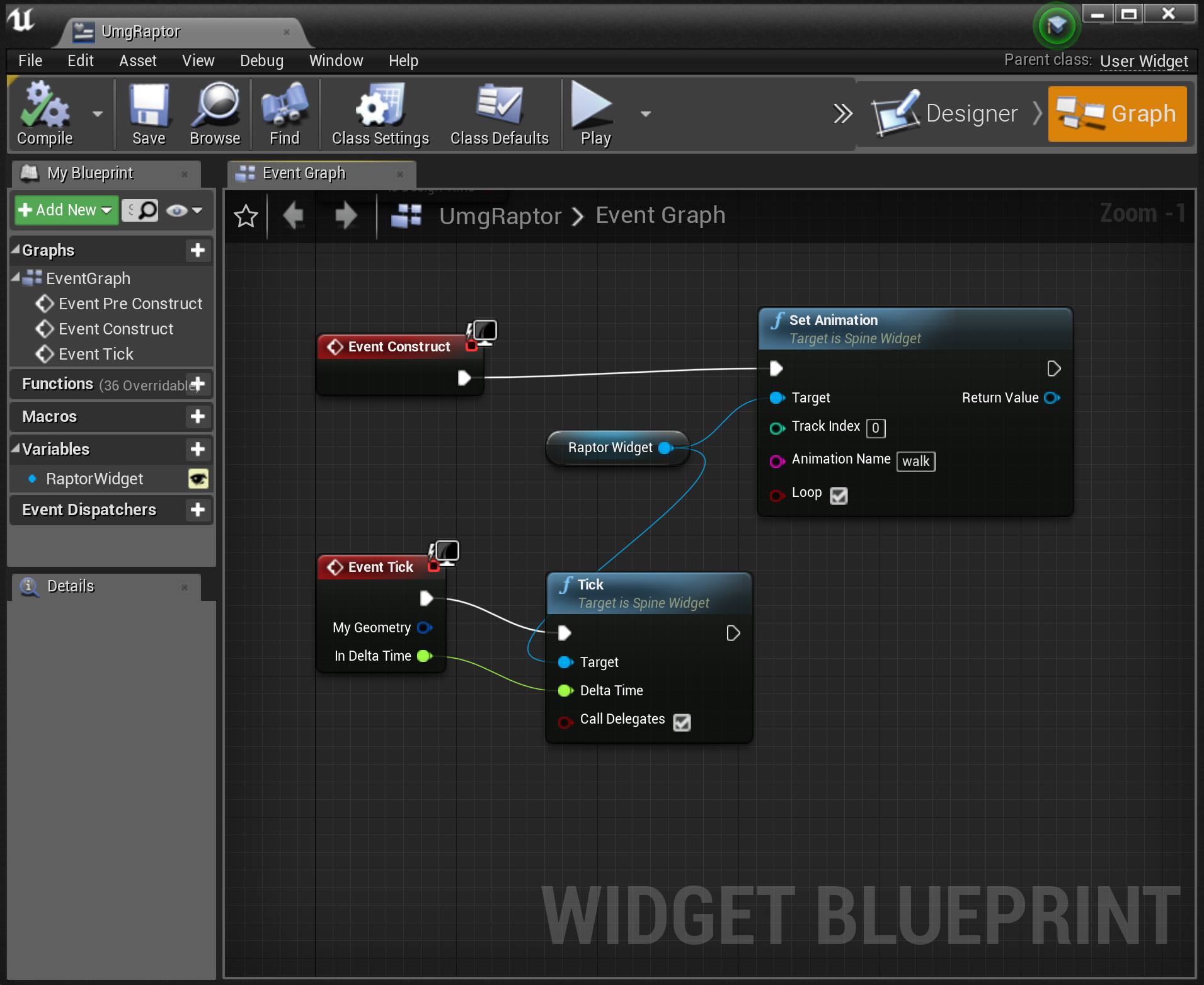

After switching from Design to Graph editing mode in the widget editor window, you can modify the blueprint of the widget. Here's an example blueprint:

We set the initial animation of the raptor widget when the Construct event is fired. We also need to wire up the Tick event with the widget's Tick function so it animates.

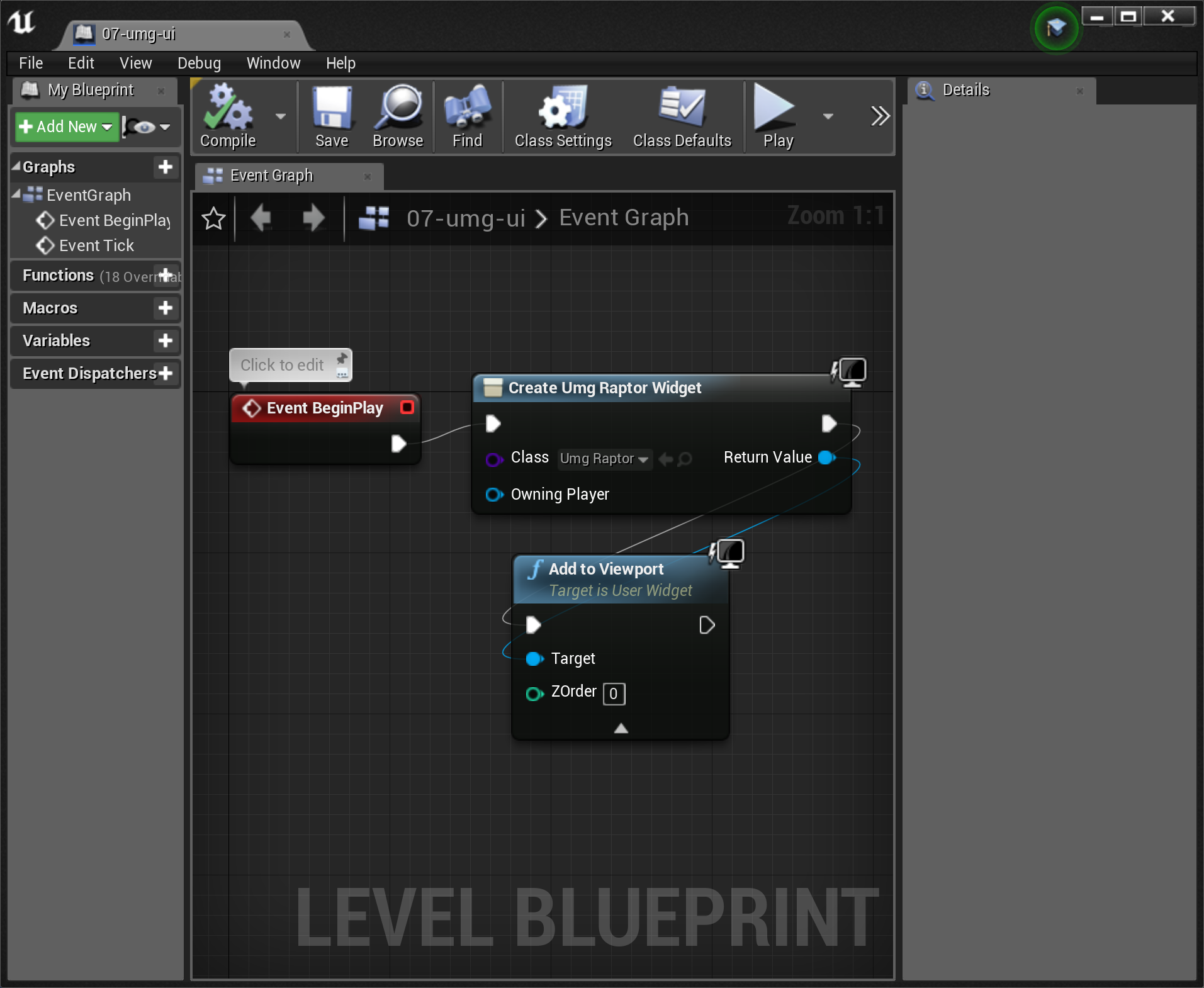

Finally, we need to open the level blueprint and add the UMG widget to the viewport:

In the blueprint, we first create the widget, specified by its class name, and then add it to the viewport.
